Bolted Mechanical fittings, SteelLock®
Outlet in Pipe End, SteelLock® Series
Outlet in Pipe End, SteelLock® Series
Type: Bolted Mechanical fittings, SteelLock®

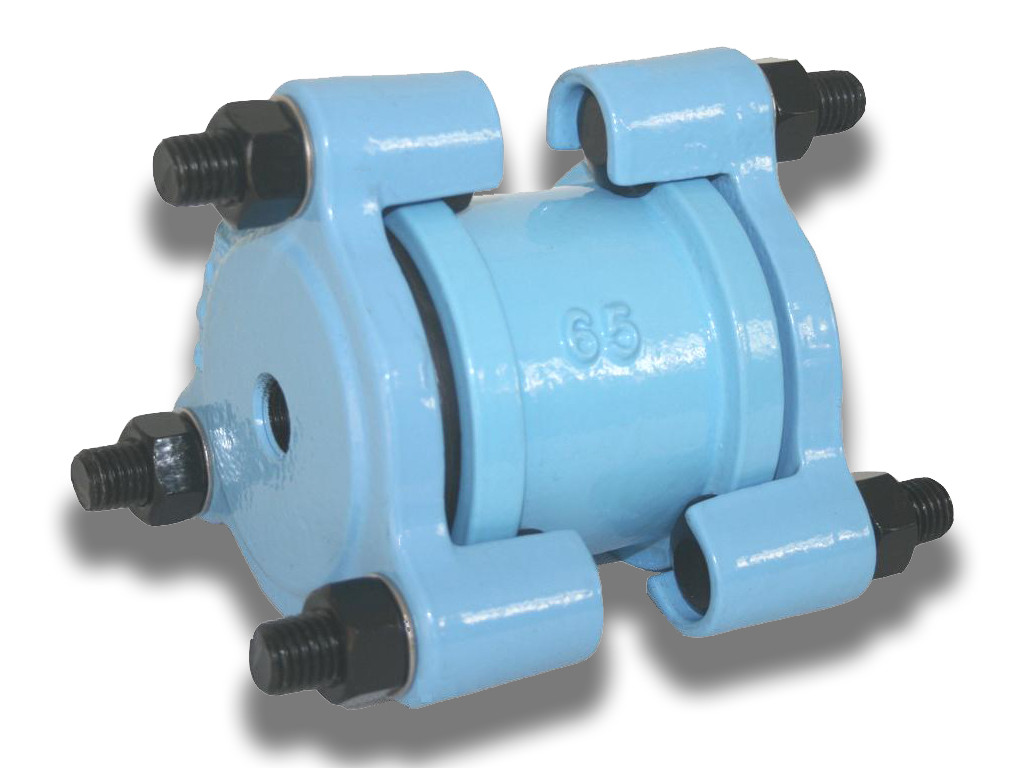

Name: Outlet in Pipe End, SteelLock® Series

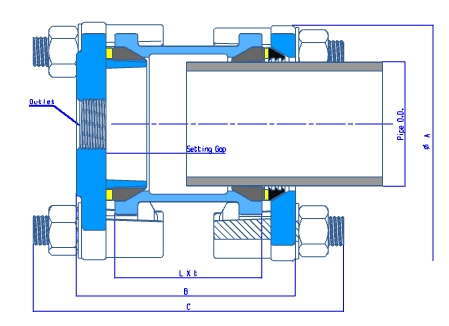

 Outlet in Pipe End                                                 Plain End to Female Thread



Main Dimensions:                                                                                                     Unit:mm

Size Pipe O.D. Fitting Overall  Body Setting Gap Bolts Weight
HIVP A B C L t Min Max n- M  x L Kg
65 76 168 142 190 90 4.5 33 66 3-M18x76 5.2


*  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.

This item can be supplied without outlet for use as end cap or with outlet connectable with threaded fittings.

Outlet is available with 1/2",3/4",1",1 1/4",1 1/2"and 2" BSP or BSPT thread as per requiement.
