| Bolted Mechanical fittings, SteelLock® |
|
|
|
 |
| Type: |
Bolted Mechanical fittings, SteelLock® |
| Name: |

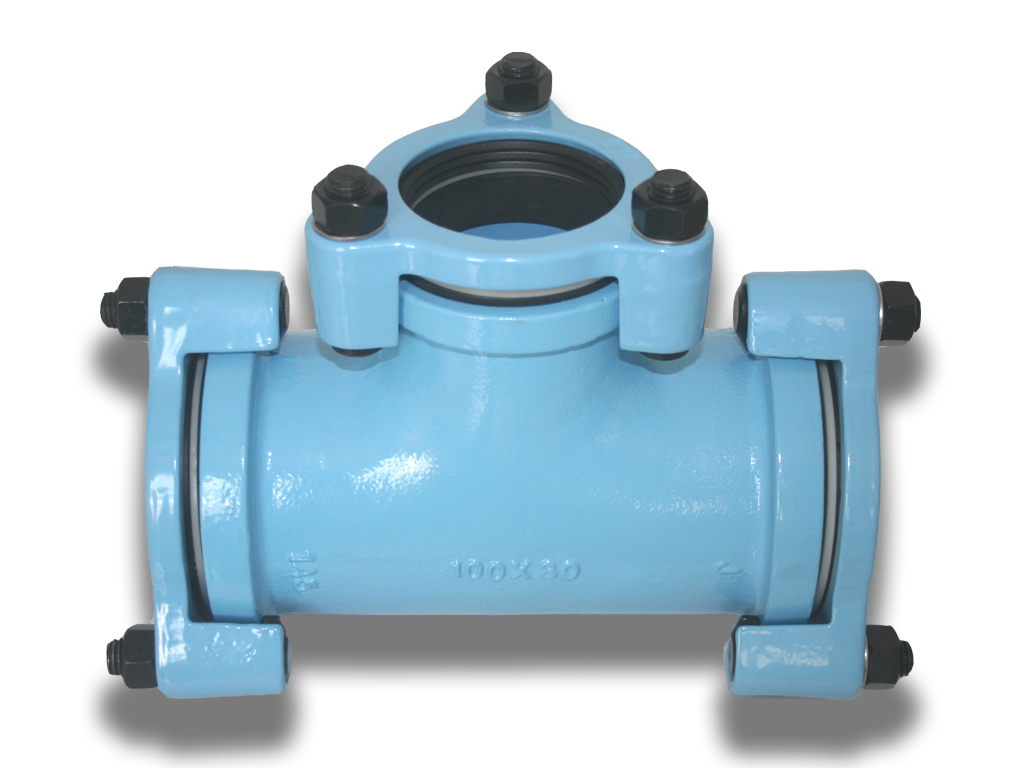

Reducing Tee, SteelLock® Series |
|
|
|
|

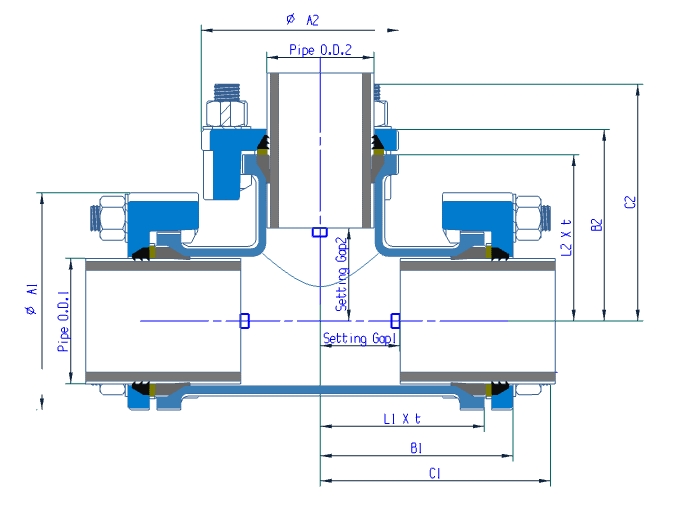

| Reducing Tee Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D.（HIVP*) | Fitting Overall | Body | Weight | | Large | Small | A1 | A2 | B1 | B2 | C1 | C2 | L1 | L2 | t | Kg | | 80X65 | 89 | 76 | 182 | 168 | 144 | 142 | 163 | 168 | 116 | 118 | 5 | 9.4 | | 100X65 | 114 | 76 | 219 | 168 | 161 | 156 | 172 | 182 | 128 | 132 | 6 | 13.8 | | 100X80 | 114 | 89 | 219 | 182 | 167 | 159 | 178 | 179 | 134 | 132 | 6 | 14.6 | | Size | Setting Gap1 | Setting Gap2 | Bolts-Main | Bolts-Branch | | Min | Max | Min | Max | n- M x L | n- M x L | | 80X65 | 47 | 82 | 54 | 88 | 3-M18x76 | 3-M18x76 | | 100X65 | 48 | 89 | 67 | 102 | 3-M18x76 | 3-M18x76 | | 100X80 | 59 | 95 | 65 | 98 | 3-M18x76 | 3-M18x76 |
* JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe. |
|
|
