| Bolted Mechanical fittings, SteelLock® |
|
|
|
 |
| Type: |
Bolted Mechanical fittings, SteelLock® |
| Name: |

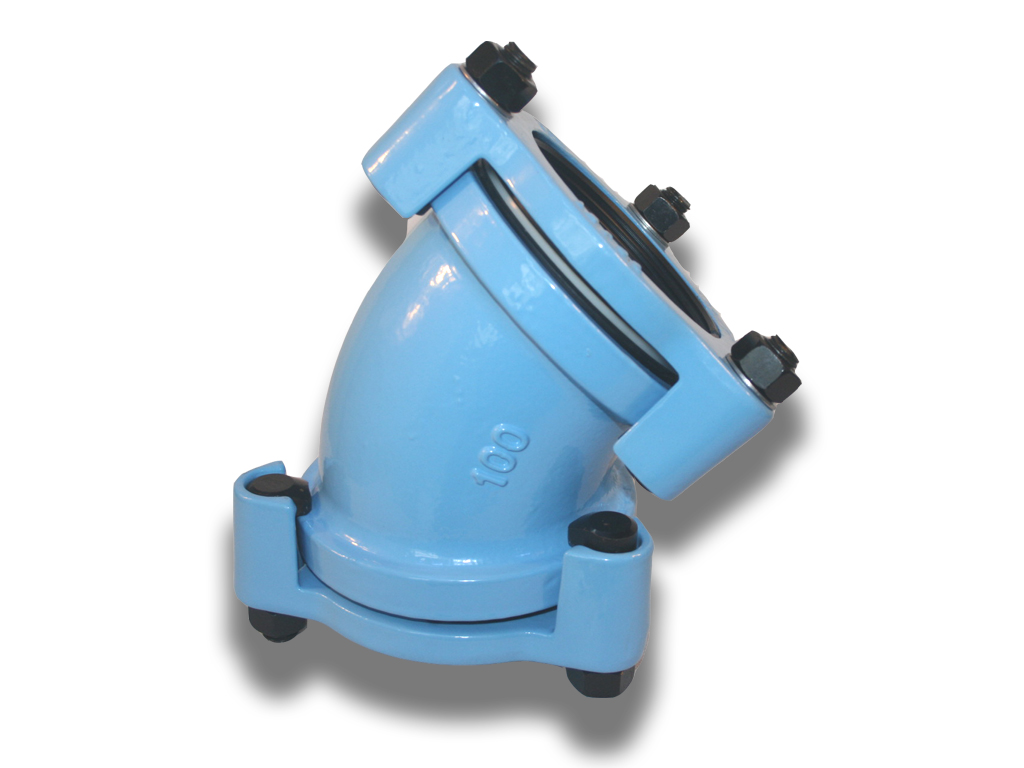

Elbow 45°,22.5°,11.25° , SteelLock® Series |
|
|
|
|

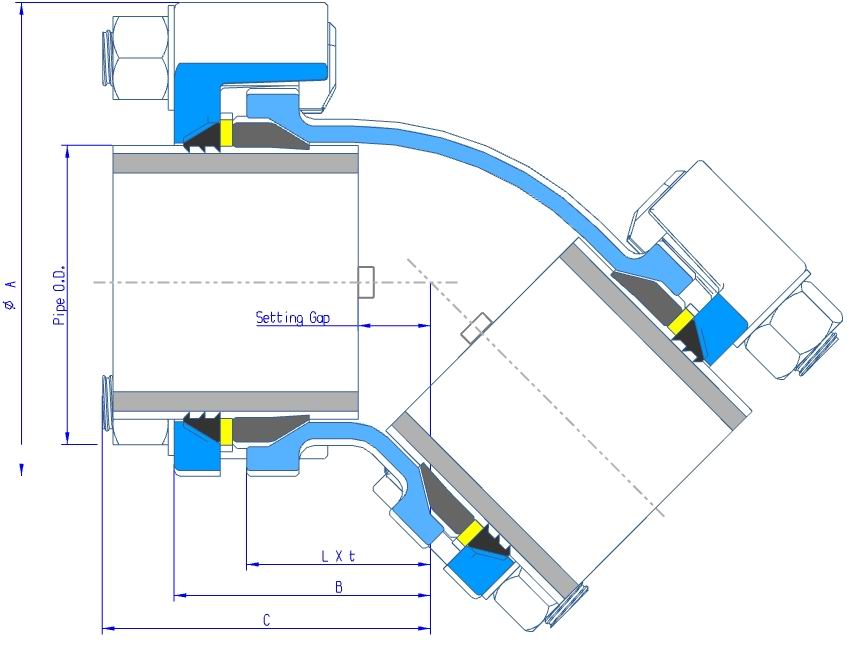

Elbow 45°，22.5°，11.25° Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D. | Coupling Overall | Body | Setting Gap | Bolts | Weight | | HIVP﹡ | A | B | C | L | t | Min | Max | n- M x L | Kg | | 65X45° | 76 | 168 | 74 | 100 | 50 | 4.5 | 15 | 20 | 3-M18x76 | 5.1 | | 80X45° | 89 | 182 | 88 | 107 | 60 | 5 | 20 | 26 | 3-M18x76 | 5.7 | | 80LX45° | 89 | 182 | 146 | 166 | 118.5 | 5 | 39 | 85 | 3-M18x76 | 7.2 | | 100X45° | 114 | 219 | 107 | 118 | 74 | 6 | 27 | 35 | 3-M18x76 | 9.1 | | 100LX45° | 114 | 219 | 164 | 175 | 131 | 6 | 41 | 92 | 3-M18x76 | 11.6 | | 65LX22.5° | 76 | 168 | 88 | 114 | 64 | 4.5 | 14 | 34 | 3-M14x60 | 4.8 | | 80X22.5° | 89 | 182 | 92 | 112 | 64.5 | 5 | 25 | 31 | 3-M18x76 | 5.5 | | 80LX22.5° | 89 | 182 | 138 | 157 | 110 | 5 | 30 | 76 | 3-M18x76 | 7.1 | | 100X22.5° | 114 | 219 | 98 | 109 | 65 | 6 | 15 | 26 | 3-M18x76 | 8.7 | | 100LX22.5° | 114 | 219 | 156 | 167 | 123 | 6 | 33 | 84 | 3-M18x76 | 11.9 | | 80X11.25° | 89 | 182 | 82 | 101 | 54 | 5 | 14 | 20 | 3-M18x76 | 5.8 | | 80LX11.25° | 89 | 182 | 125 | 144 | 97 | 5 | 17 | 63 | 3-M18x76 | 6.8 | | 100X11.25° | 114 | 219 | 95 | 106 | 62 | 6 | 12 | 23 | 3-M18x76 | 9.3 | | 100LX11.25° | 114 | 219 | 138 | 149 | 105 | 6 | 15 | 66 | 3-M18x76 | 11.2 |
* JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe. |
|
|
