| Junior Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Junior Mechanical fittings, Standard® |
| Name: |

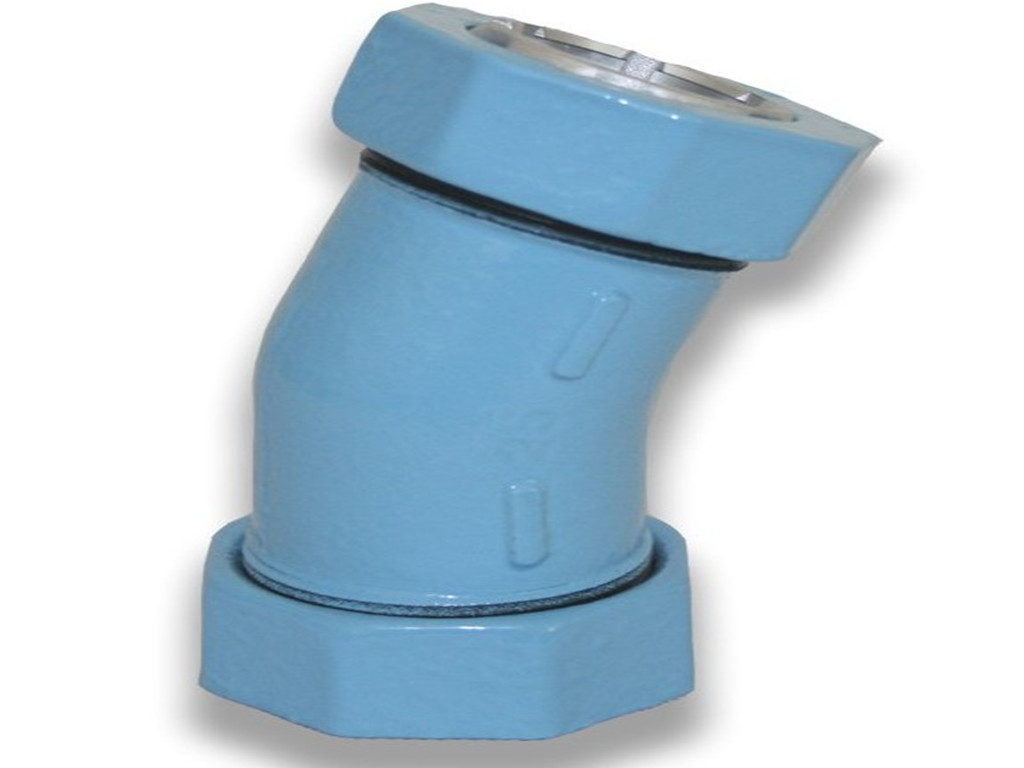

Elbow 45°,22.5°, Standard® Series |
|
|
|
|

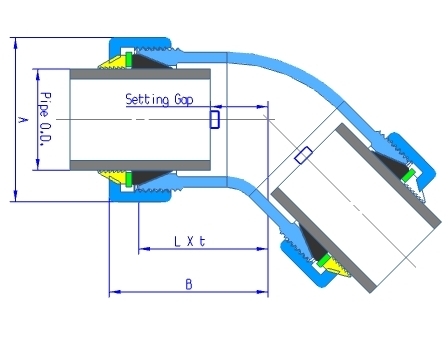

| Elbow 45°,22.5° Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D. | Coupling Overall | Body | Setting Gap | Weight | | SGP-PD﹡ | HIVP﹡﹡ | A | B | L | t | Min | Max | KG | | 15X45° | 24.7 | 22.0 | 49 | 47 | 38 | 3 | 12 | 16 | 0.3 | | 20X45° | 30.2 | 26.0 | 55 | 52 | 42 | 3 | 14 | 15 | 0.5 | | 25X45° | 37.0 | 32.0 | 66 | 56 | 46 | 4 | 15 | 19 | 0.6 | | 32X45° | 45.7 | 42.0 | 73 | 63 | 52 | 4 | 18 | 28 | 0.9 | | 40X45° | 52.6 | 48.0 | 80 | 68 | 57 | 4 | 20 | 32 | 1.1 | | 50X45° | 64.5 | 60.0 | 96 | 79 | 67 | 5 | 27 | 43 | 1.8 | | 25X22.5° | 37.0 | 32.0 | 66 | 56 | 46 | 4 | 15 | 19 | 0.6 | | 32X22.5° | 45.7 | 42.0 | 73 | 63 | 52 | 4 | 18 | 28 | 0.8 | | 40X22.5° | 52.6 | 48.0 | 80 | 68 | 57 | 4 | 20 | 32 | 1.2 | | 50X22.5° | 64.5 | 60.0 | 96 | 79 | 67 | 5 | 27 | 43 | 2.0 |
* JWWA K 132: Polyethylene powder-coated steel pipe for water supply. ** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
|
|
|
