Outlet in Pipe End, Standard® Series
Outlet in Pipe End, Standard® Series
Type: Bolted Mechanical fittings, Standard®
Name: Outlet in Pipe End, Standard® Series

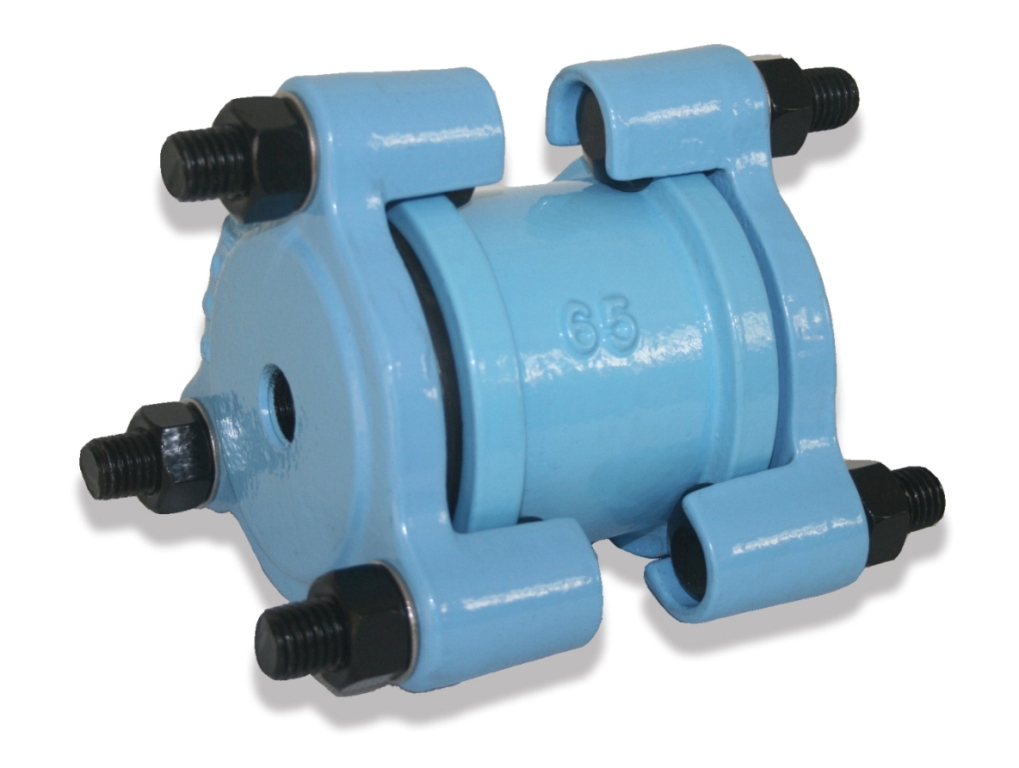

Outlet in Pipe End                                                 Plain End to Female Thread

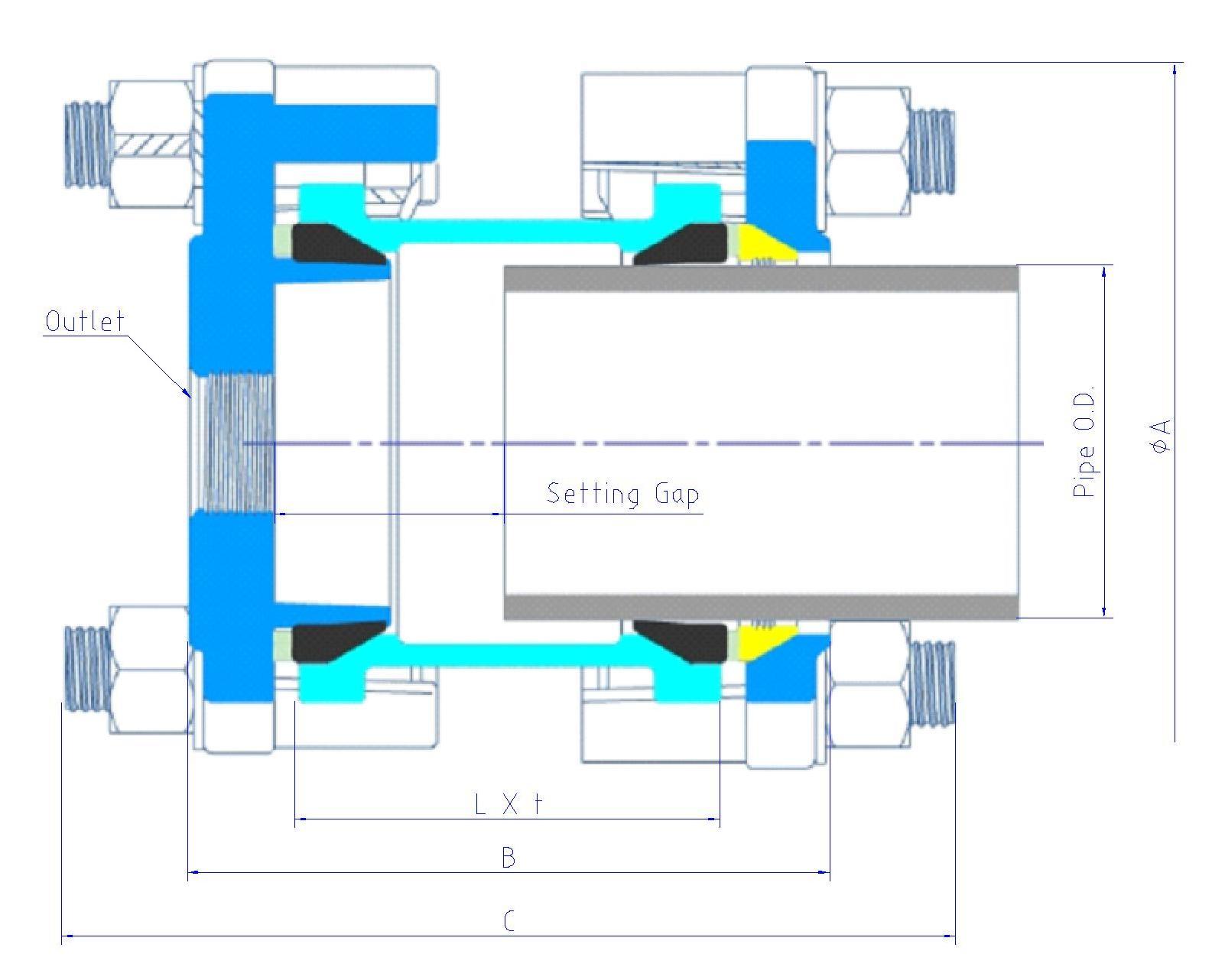

Main Dimensions:                                                                                                     Unit:mm

Size Pipe O.D. Coupling Overall  Body Setting Gap Bolts Weight
SGP-PD HIVP﹡﹡ A B C L t Min Max n- M  x L Kg
65 80.3 76 168 145 190 90 4.5 33 66 3-M18x76 5.3

*   JWWA K 132:  Polyethylene Powder-Coated Steel Pipe for Water Supply.

**  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.

This item can be supplied without outlet for use as end cap or with outlet connectable with threaded fittings.

Outlet is available with 1/2",3/4",1",1 1/4",1 1/2"and 2" BSP or BSPT thread as per requiement.
