| Bolted Mechanical fittings, Standard® |
|
|
|
 |
| Type: |
Bolted Mechanical fittings, Standard® |
| Name: |

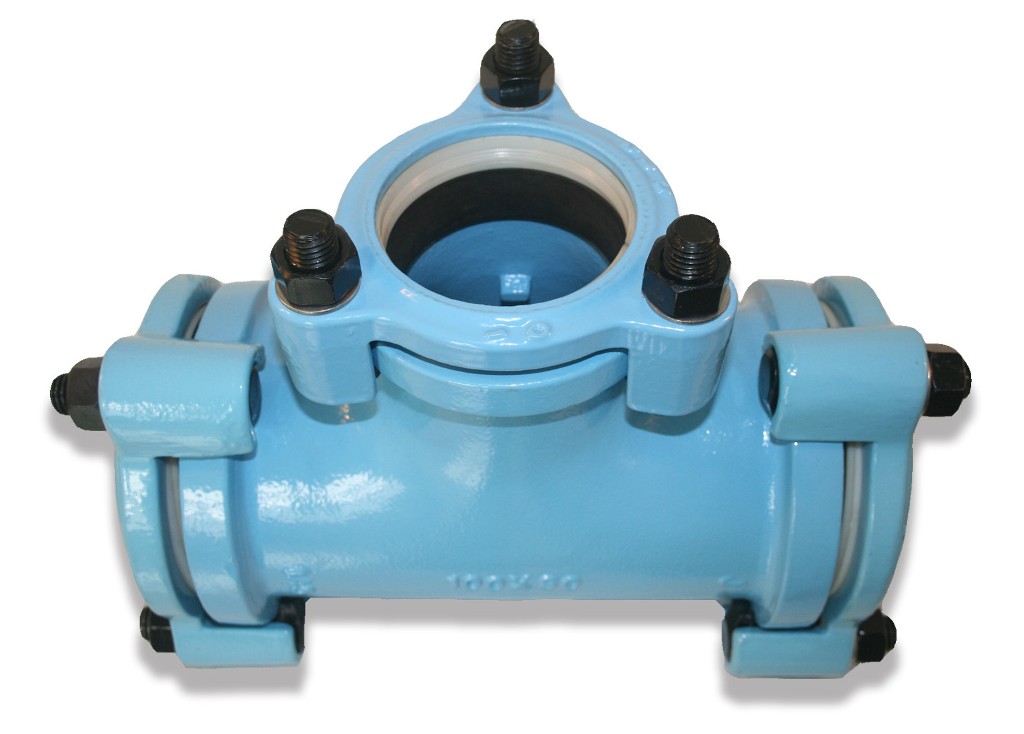

Reducing Tee, Standard® Series |
|
|
|
|

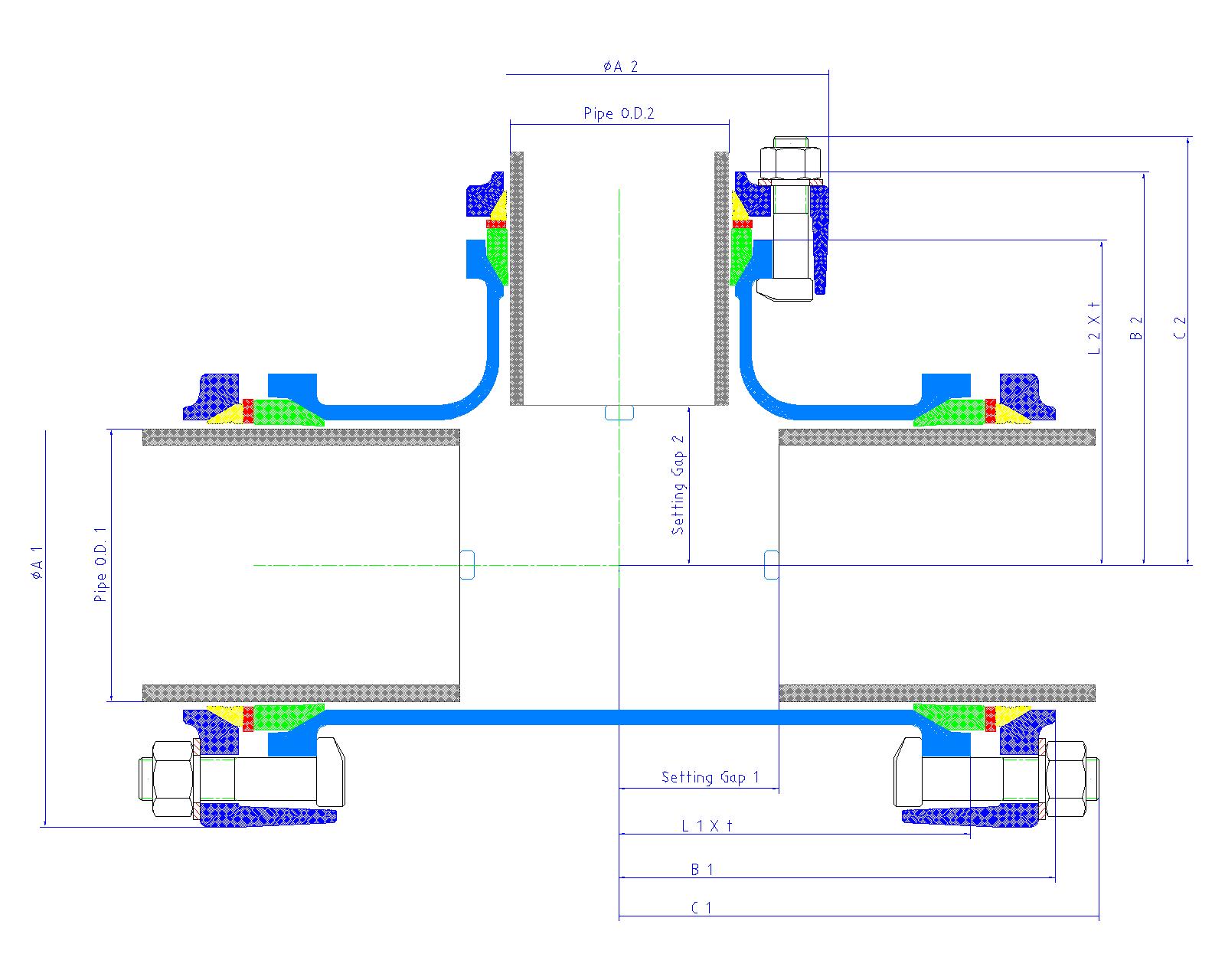

Reducing Tee Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D.1 | Pipe O.D.2 | Coupling Overall | Weight | | SGP-PD﹡ | HIVP﹡﹡ | SGP-PD﹡ | IWVP﹡﹡ | A1 | A2 | B1 | B2 | C1 | C2 | Kg | | 80X65 | 93.1 | 89 | 80.3 | 76 | 182 | 168 | 147 | 145 | 163 | 168 | 9.3 | | 100X65 | 118.3 | 114 | 80.3 | 76 | 219 | 168 | 167 | 159 | 172 | 182 | 13.4 | | 100X80 | 118.3 | 114 | 93.1 | 89 | 219 | 182 | 173 | 162 | 178 | 179 | 14.1 | | Size | Body | Setting Gap1 | Setting Gap2 | Bolts-Main | Bolts-Branch | | L1 | L2 | t | Min | Max | Min | Max | n- M x L | n- M x L | | 80X65 | 116 | 118 | 5 | 47 | 82 | 54 | 88 | 3-M18x76 | 3-M18x76 | | 100X65 | 128 | 132 | 6 | 48 | 89 | 67 | 102 | 3-M18x76 | 3-M18x76 | | 100X80 | 134 | 132 | 6 | 59 | 95 | 65 | 98 | 3-M18x76 | 3-M18x76 |
* JWWA K 132: Polyethylene Powder-Coated Steel Pipe for Water Supply. ** JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
|
|
|
