Features and Benefit:

■ Low Pressure Drop

   The same flow area with the Woltmann Meter

connected after it to assure low pressure drop.

■ Less turbulent flow

   The same flow direction with the Meter to best reduce turbulent flow to the meter.

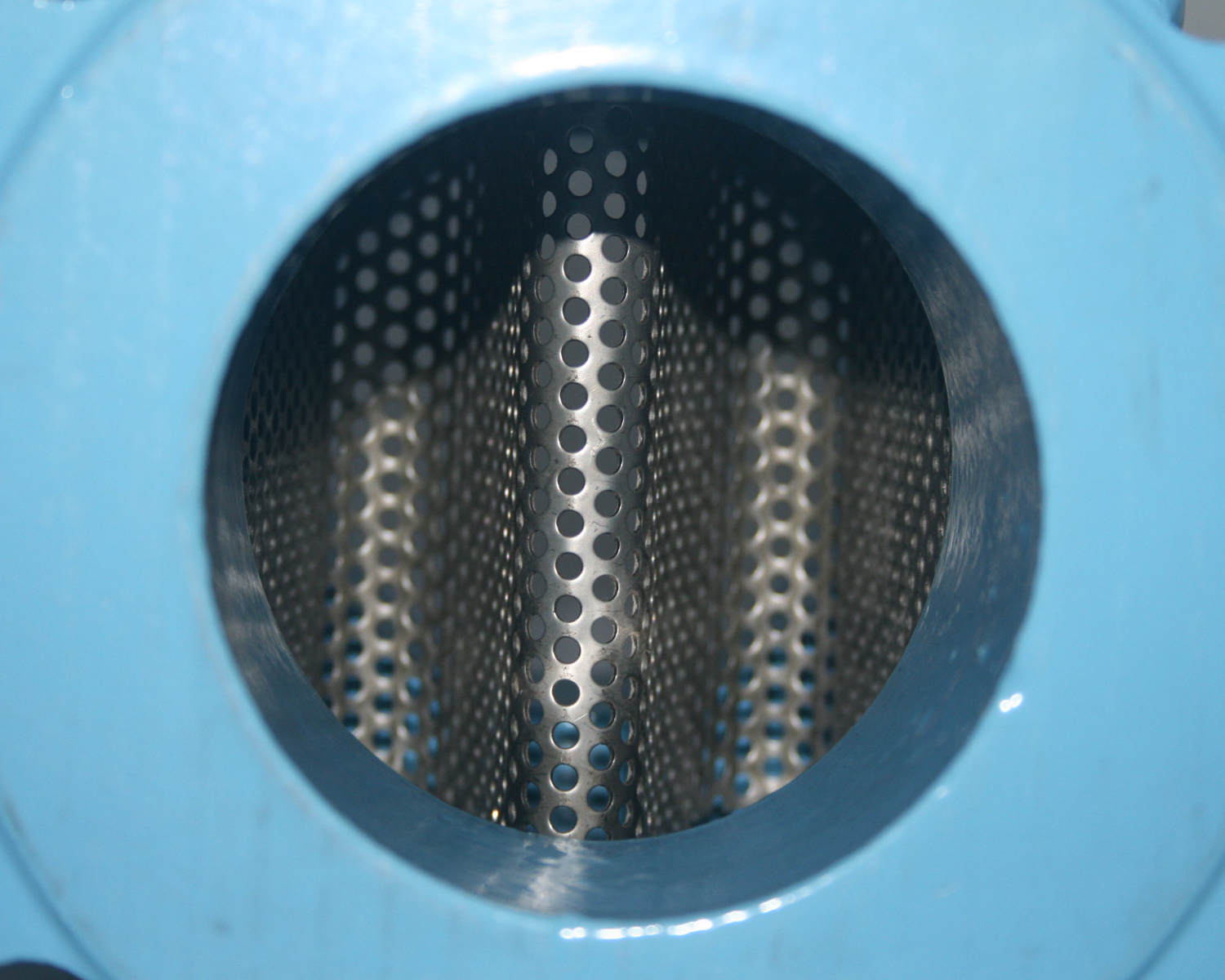

■ Easy filter replacement

   Filter can be replaced in the same way of meter checking.

   The strainer even can be installed in one surface box with the water meter.

■ Available for horizontal or vertical position

Parts and Material

 Body and Cover:

    Ductile Cast Iron to BS EN 1563 Grade GJS450-10

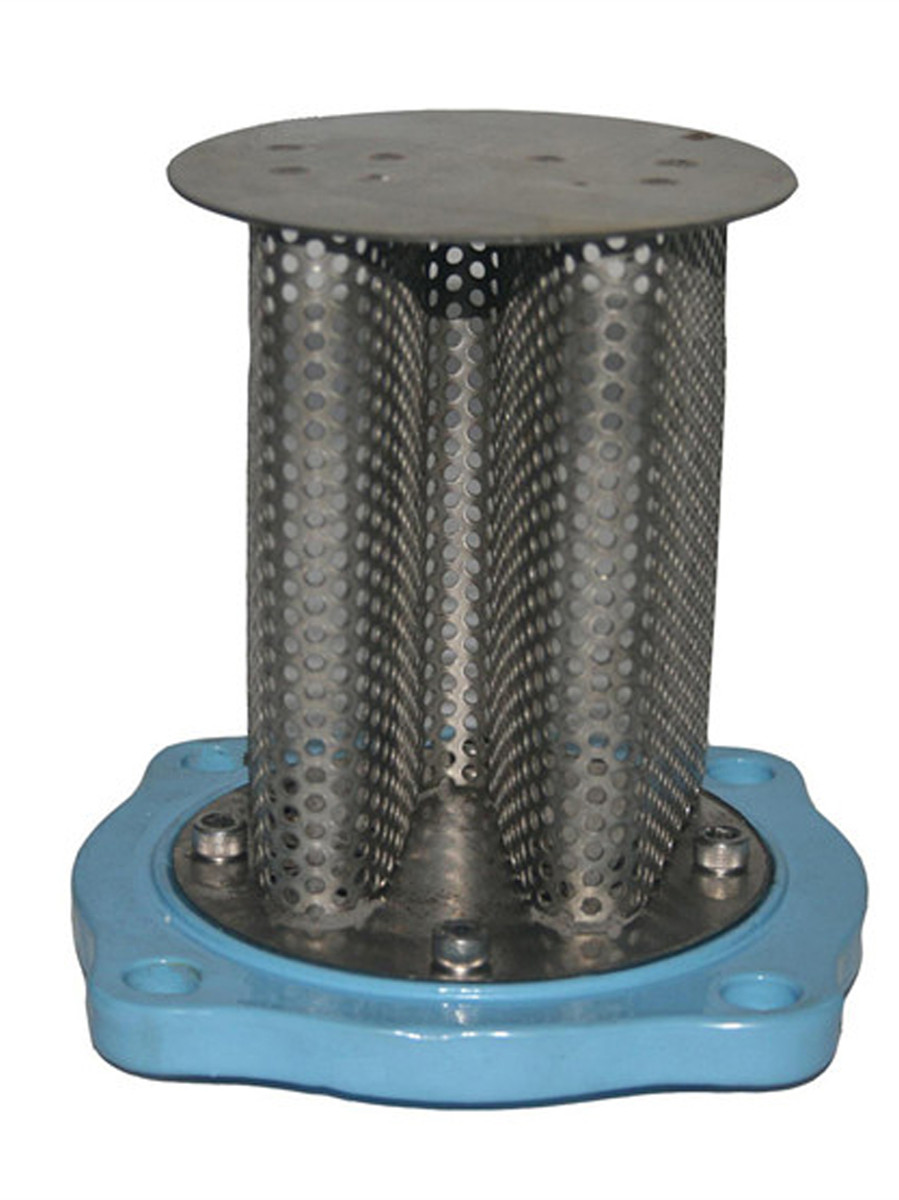

 Filter and Bolts,Nuts:

    Stainless Steel to BS 970 Grade 304S31

 Coating:

     Body and Cover are Epoxy powder coated in WRAS  approved material.

     Coating thickness:  ≥150μ

Size available: 80A,100A

Pressure Rating: PN10 and PN16

                            150# and 300#

Flange Drilling: PN10 and PN16

                          ANSI B 16.5

                          JIS 10K
