Type: Bolted Mechanical fittings, SteelLock®

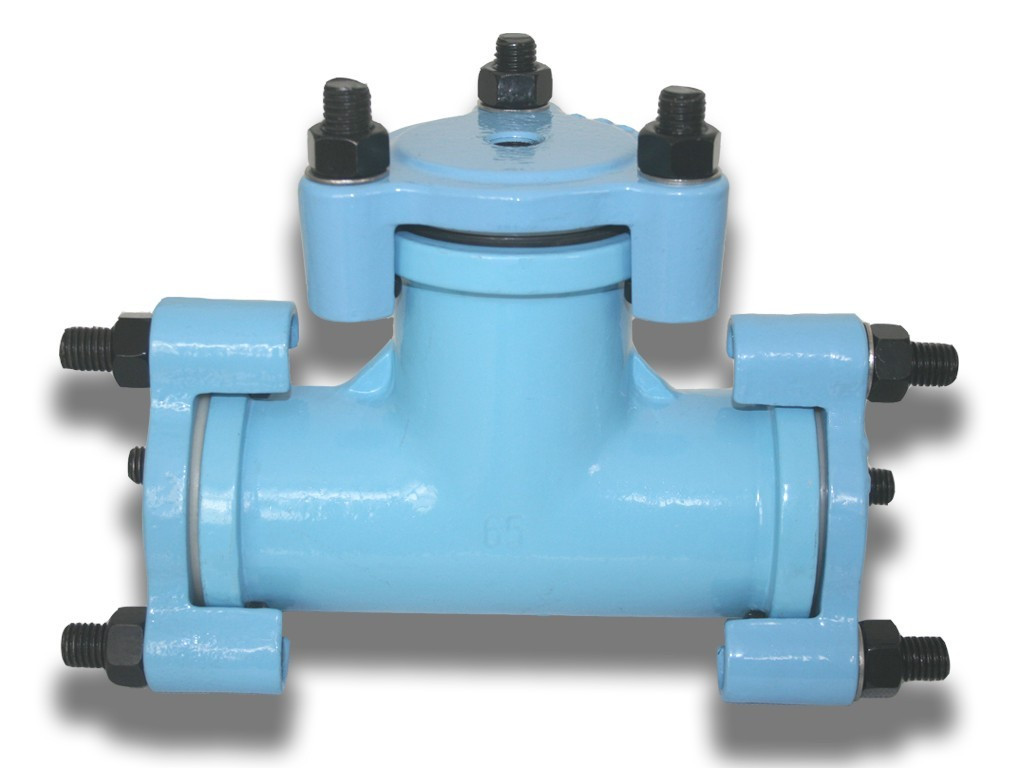

Name: Outlet with Tee, SteelLock® Series
 Outlet with Tee                                              Plain End to Female Thread



Main Dimensions:                                                                                                     Unit:mm

Size Pipe O.D. Fitting Overall  Body Setting Gap Weight
HIVP A1 A2 B1 B2 C1 C2 L1 L2 t Min Max Kg
65 76 168 169 139 147 165 170 115 120 4.5 55 85 9.0
80 89 182 169 144 145 163 168 116 118 5 47 82 10.3
100 114 219 169 161 159 172 182 128 132 6 48 89 14.7
Size Bolts
n- M  x L
65 3-M18x76
80 3-M18x76
100 3-M18x76

*  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.

This item can be supplied without outlet for use as end cap or with outlet connectable with threaded fittings.

Outlet is available with 1/2",3/4",1",1 1/4",1 1/2"and 2" BSP or BSPT thread as per requiement.
