Bolted Mechanical fittings, SteelLock®

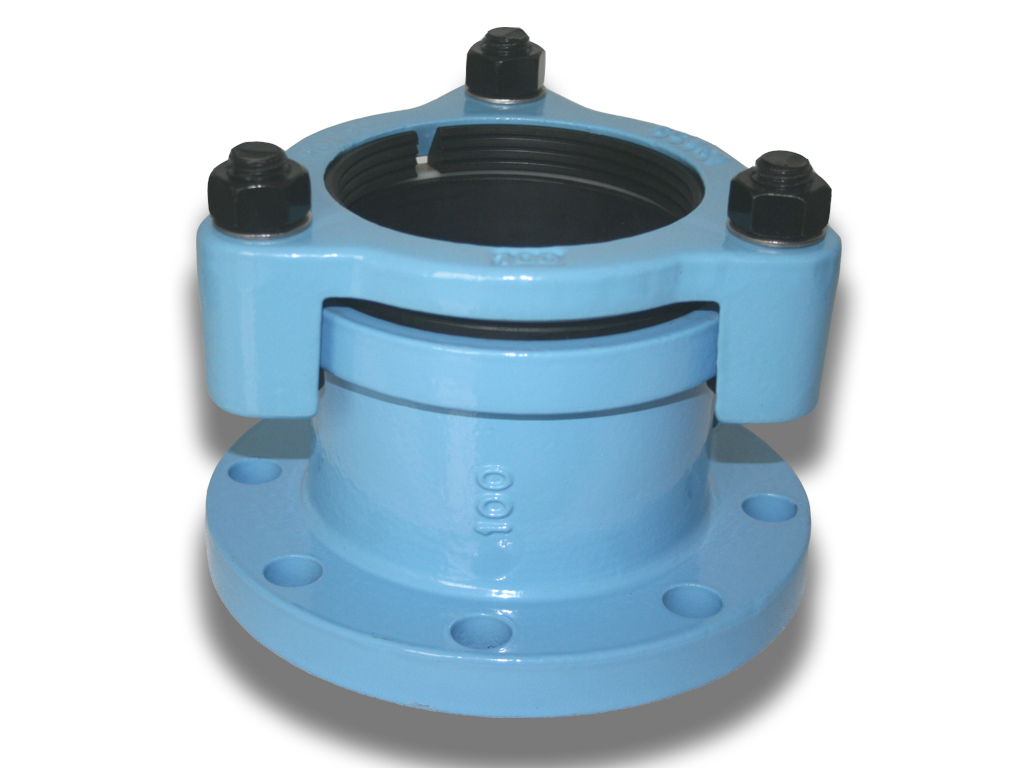

Flange Adaptor, SteelLock® Series
Flange Adaptor, SteelLock® Series
Type: Bolted Mechanical fittings, SteelLock®
Name: Flange Adaptor, SteelLock® Series
  Flange Adaptor                                                           Plain End to Flange

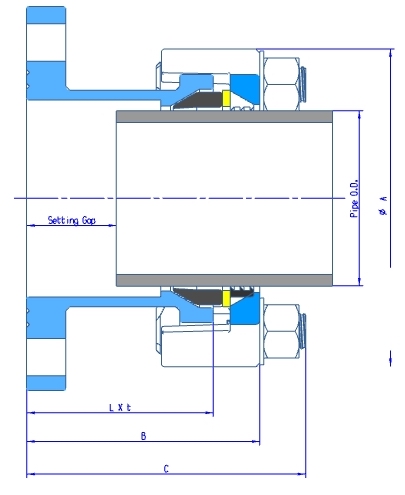

Main Dimensions:                                                                                                     Unit:mm

Size Pipe O.D. Coupling Overall  Body Setting Gap Bolts Weight
HIVP A B C L   t   Min Max n- M  x L Kg
80X80F 89 182 123 142 95 5 9 60 3-M18x76 6.0
100X100F 114 219 142 153 109 6 12 66 3-M18x76 8.1


*  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.

When ordering, please notice flange Specification PN10/PN16 or JIS 10K
