Bolted Mechanical fittings, SteelLock®
Coupling, SteelLock® Series
Coupling, SteelLock® Series
Type: Bolted Mechanical fittings, SteelLock®

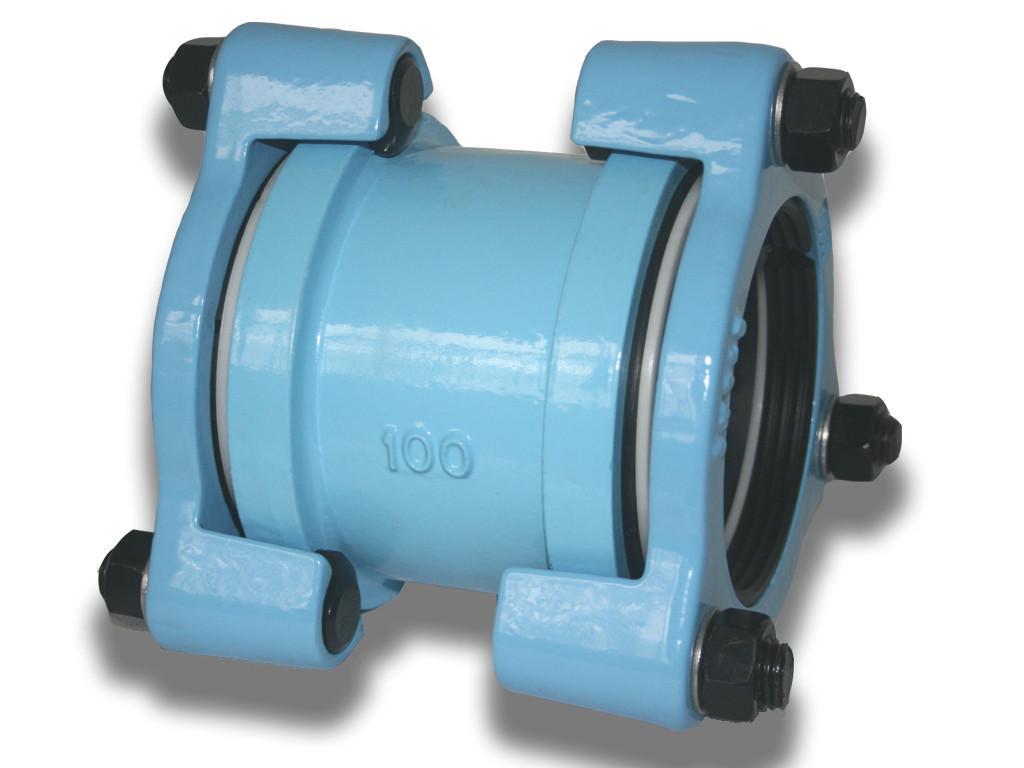

Name: Coupling, SteelLock® Series

Coupling                                                                     Plain End to Plain End

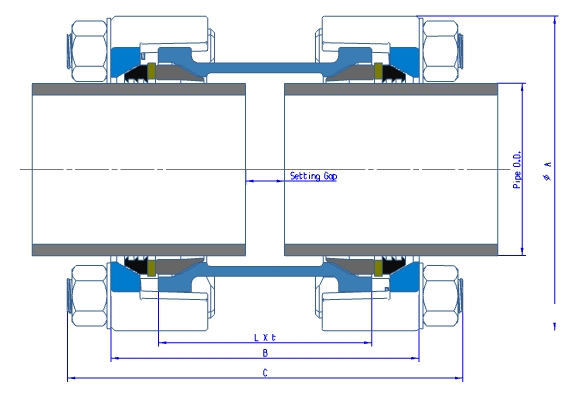

Main Dimensions:                                                                                                     Unit:mm

Size Pipe O.D. Coupling Overall  Body Setting Gap Bolts Weight
HIVP A B C L t Min Max n- M  x L Kg
65 76 168 139 190 90 4.5 8 22 3-M18x76 4.4
80 89 182 166 204 110 5 9 32 3-M18x76 5.5
80L 89 182 216 254 160 5 9 82 3-M18x76 6.7
100 114 219 184 206 118 6 12 30 3-M18x76 8.9
100L 114 219 246 268 180 6 12 92 3-M18x76 10.7

**  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.

#The Coupling is designed without pipe stopper in the middle of the body allowing pipe line repair usage.The whole coupling can be slid completely over the end of the pipe to enable a repair pipe piece inserted.
