Flange Tee, SteelLock® Series
Flange Tee, SteelLock® Series
Type: Bolted Mechanical fittings, SteelLock®

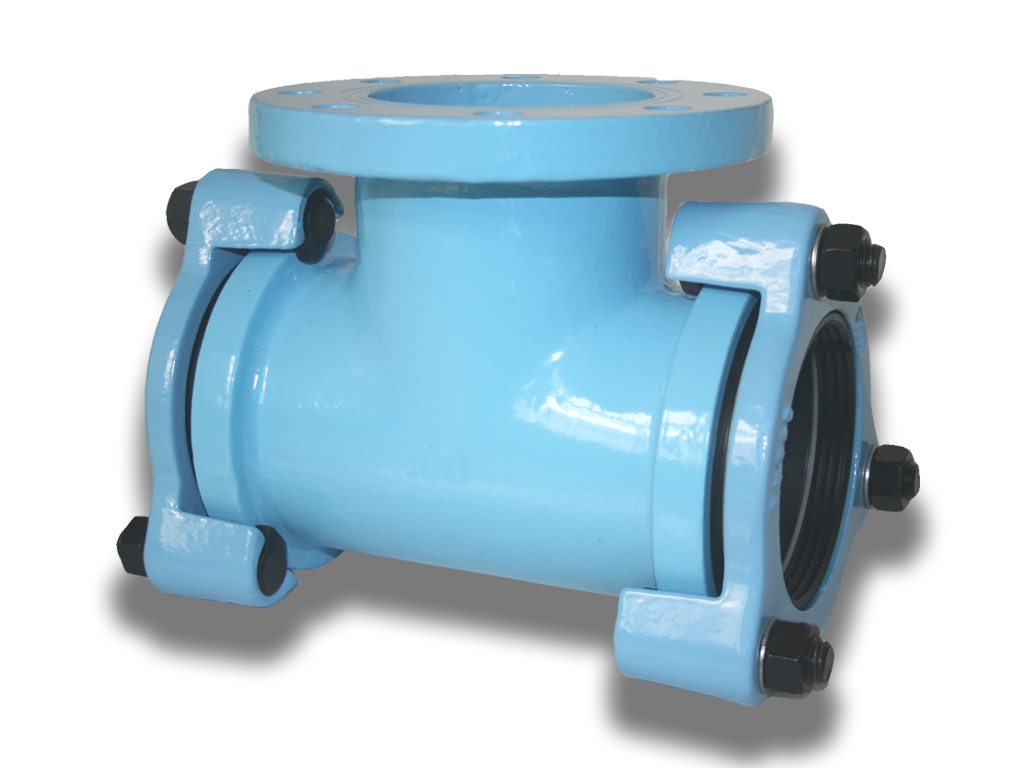

Name: Flange Tee, SteelLock® Series
     Flanged  Tee                                            Plain End to Flange

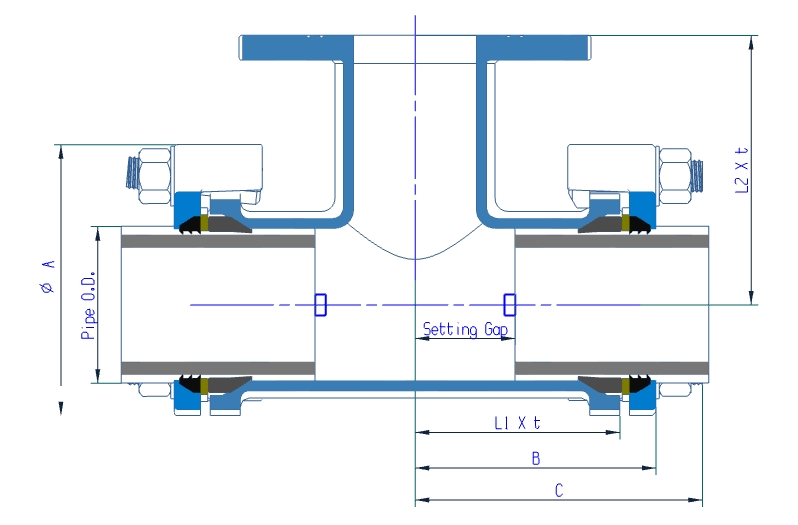

Main Dimensions:                                                                                                     Unit:mm

Size Pipe O.D. Fitting Overall  Body Setting Gap Bolts Weight
HIVP A B C L1 L2   t   Min Max n- M  x L Kg
80X80F 89 182 121 139 92 153 5 48 58 3-M18x76 10.1
80X100F 89 182 138 156 109 155 5 65 75 3-M18x76 12.3
100X80F 114 219 141 152 108 181 6 53 69 3-M18x76 15.0
100X100F 114 219 149 160 116 185 6 61 77 3-M18x76 16.5

*  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.

When ordering, please notice flange Specification PN10/PN16 or JIS 10K
