Bolted Mechanical fittings, SteelLock®

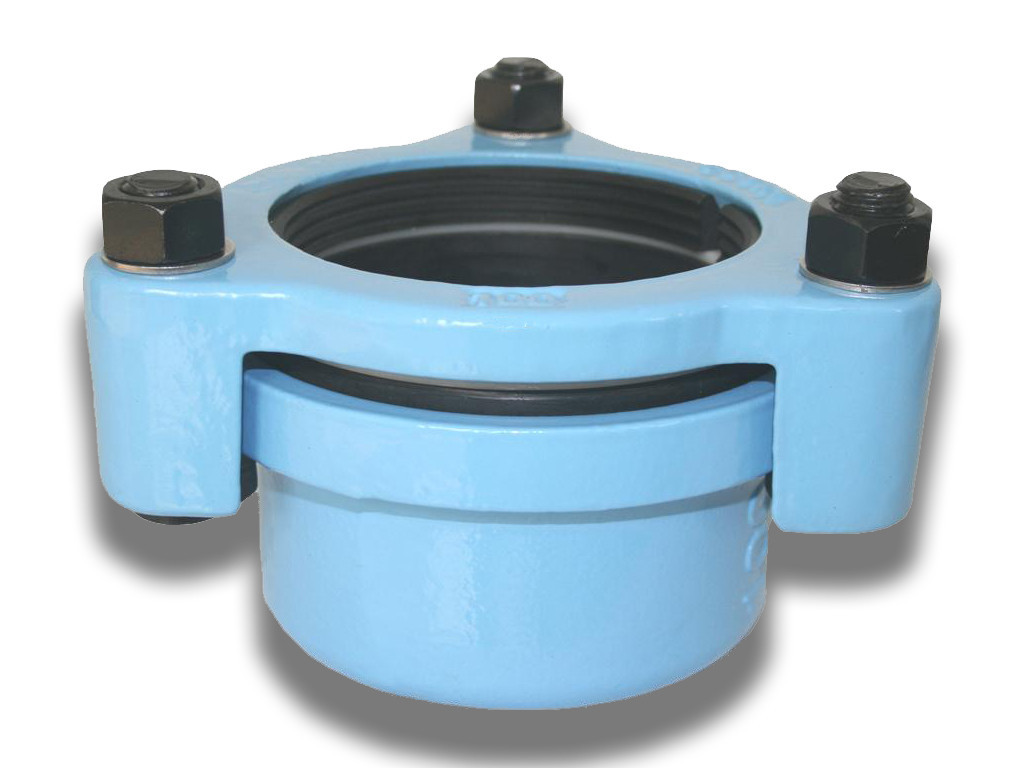

Cap, SteelLock® Series
Cap, SteelLock® Series
Type: Bolted Mechanical fittings, SteelLock®
Name: Cap, SteelLock® Series
  Cap                                                                                      Plain End to Plain End

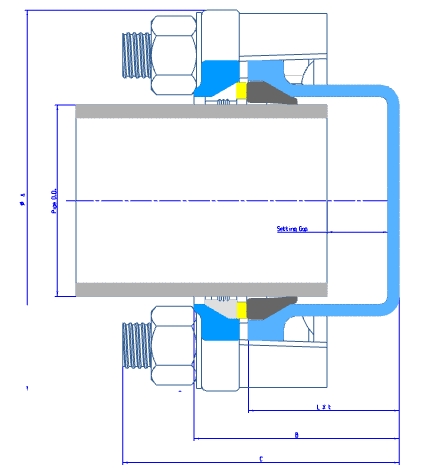

Main Dimensions:                                                                                                     Unit:mm

Size Pipe O.D. Fitting Overall  Body Setting Gap Bolts Weight
HIVP A B C L t Min Max n- M  x L Kg
65 76 168 84 110 60 4.5 8 26 3-M18x76 2.5
80 89 182 98 117 70 5 9 31 3-M14x60 3.2
100 114 215 113 124 80 6 12 35 3-M18x76 5.2

*  JIS K 6742:  Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply  or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe.
