| Bolted Mechanical fittings, SteelLock® |
|
|
|
 |
| Type: |
Bolted Mechanical fittings, SteelLock® |
| Name: |

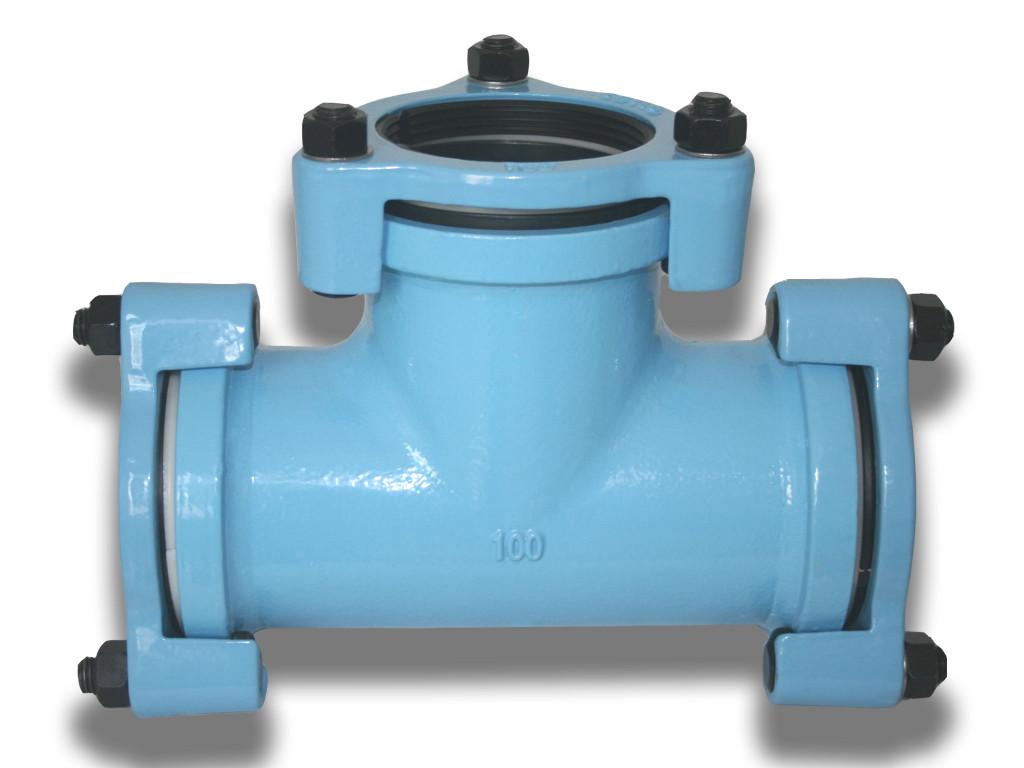

Tee, SteelLock® Series |
|
|
|
|

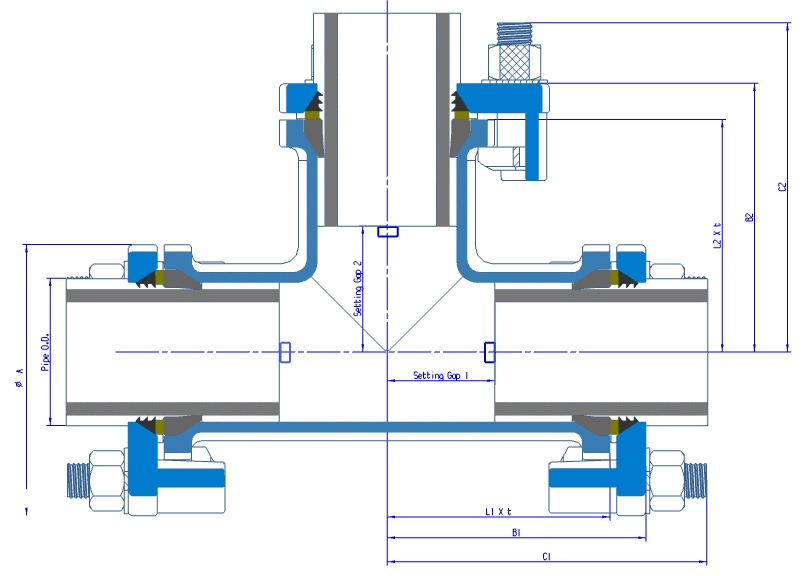

| Tee Plain End to Plain End  Main Dimensions: Unit:mm | Size | Pipe O.D. | Fitting Overall | Body | Bolts | Weight | | HIVP﹡ | A | B1 | B2 | C1 | C2 | L1 | L2 | t | n- M x L | Kg | | 65X65 | 76 | 168 | 139 | 144 | 165 | 170 | 115 | 120 | 4.5 | 3-M18x76 | 8.1 | | 80X80 | 89 | 182 | 151 | 151 | 170 | 170 | 123 | 123 | 5 | 3-M18x76 | 10.0 | | 100X100 | 114 | 219 | 180 | 180 | 191 | 191 | 147 | 147 | 6 | 3-M18x76 | 16.3 | | Size | Setting Gap1 | Setting Gap2 | | Min | Max | Min | Max | | 65X65 | 55 | 85 | 55 | 90 | | 80X80 | 54 | 89 | 54 | 89 | | 100X100 | 67 | 108 | 67 | 108 |
* JIS K 6742: Unplasticized poly (vinyl chloride) (PVC-U) pipes for water supply or other Imperial pipes including PVC pipe, PE Pipe, ABS pipe and Steel pipe. |
|
|
